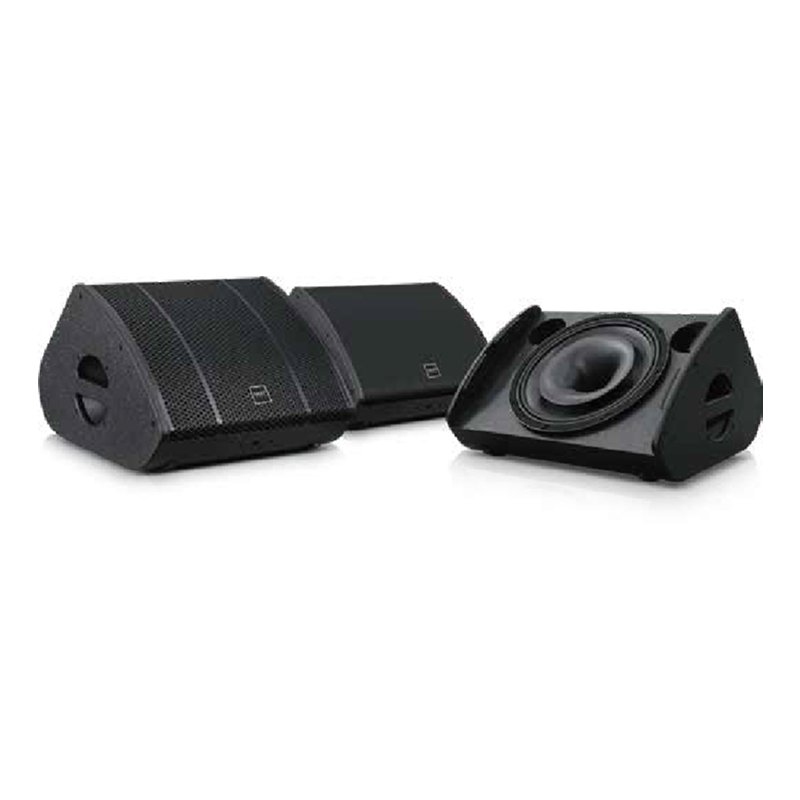

X Series
Coaxial Stage Monitor Speaker
Model : X12, X15
Description
The X Series is a versatile coaxial system for short-throw sound reinforcement and stage monitoring.
Its bass-reflex cabinet with optimized vents enhances efficiency, while the 15mm birch plywood construction ensures durability and excellent sound clarity.
Technical Specifications:
| Model | X12 | X15 |
|---|---|---|
| System Type | 12″ coaxial monitor | 15″ coaxial monitor |
| Frequency Range | 40Hz–18kHz | 45Hz–18kHz |
| Frequency Response (-3dB) | 70Hz–18kHz | 70Hz–18kHz |
| Sensitivity (1W/1m) | 105dB SPL | 96dB SPL |
| Nominal Impedance | 8 ohms | 8 ohms |
| Power Rating | 500W | 450W |
| Maximum SPL | 125dB SPL | 121dB SPL |
| Coverage Pattern | 90° × 90° | 90° × 90° |
| Net Weight | 23 kg | 18 kg |
