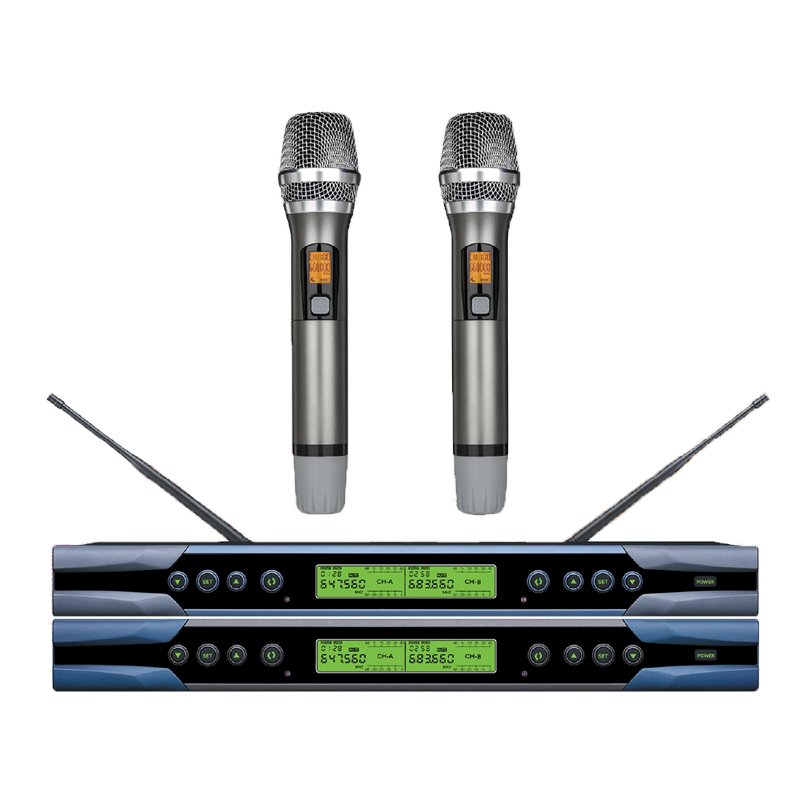

V9
UHF Wireless Microphone System
Description
The V9 is a professional-grade UHF wireless microphone system designed for stage performance, conferencing, and entertainment use.
Featuring stable PLL phase-locked circuitry and digital pilot technology, it ensures clear signal transmission and resistance to interference.
Its high-definition LCD display and intuitive controls make setup and frequency adjustment quick and easy, offering reliable performance in any environment.
Key Features:
-
UHF frequency range with PLL phase-locked loop technology for stable signal
-
High-definition LCD display for clear system status
-
Adjustable gain, frequency, and sensitivity settings
-
Wide transmission range with low noise and strong anti-interference performance
-
Rechargeable lithium battery for long operating time
-
Compatible with handheld, headset, and lavalier transmitters
Technical Specifications:
| Parameter | Specification |
|---|---|
| Frequency Range | UHF 610–670 MHz |
| Frequency Stability | ±0.001% |
| Modulation Method | FM |
| Frequency Response | 20Hz–16kHz |
| Signal-to-Noise Ratio | >90dB |
| Dynamic Range | ≥106dB |
| Distortion | ≤0.5% |
| Output Power | 5mW / 30mW |
| Battery Type | 3.7V 18650 Rechargeable Li-ion |
| Battery Life | 8–10 hours |
| Power Supply (Receiver) | DC 5V |
| Transmission Distance | Up to 80 meters (open area) |
