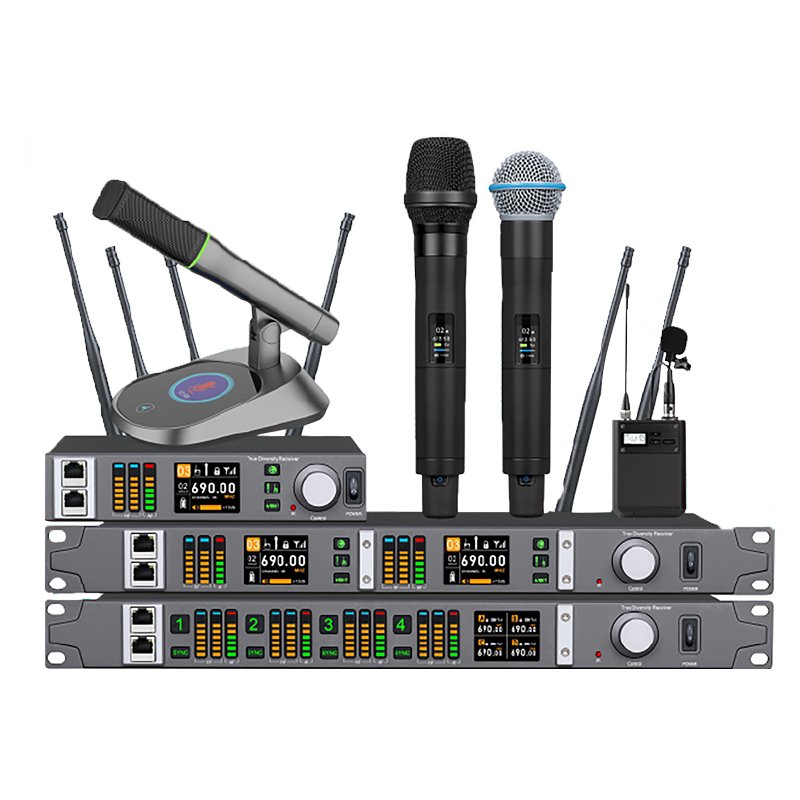

PRO Series
True Diversity UHF Wireless Microphone System
Description
The PRO Series is a high-end, true diversity UHF wireless microphone system built for professional live performances, conferences, and stage applications.
It features independent ID codes per channel to eliminate frequency crossover and uses advanced digital pilot and PLL phase-locking for interference-free transmission.
With intelligent sensitivity detection, full-color TFT display, and real-time spectrum scanning, it provides exceptional clarity, stability, and ease of use in demanding environments.
Key Features:
-
True diversity four-channel antenna system for reliable reception
-
50MHz bandwidth with up to 1000 selectable frequencies
-
One-click full-band radar scan for automatic frequency matching
-
Real-time spectrum monitoring with visual frequency analysis
-
Full-color 2.0” TFT display with Chinese/English interface
-
Automatic sensitivity adjustment up to +15dBm
-
Independent balanced and unbalanced audio outputs
-
Supports 19-inch rack mounting for professional installations
Technical Specifications:
| Parameter | Specification |
|---|---|
| Frequency Range | UHF 610–670 MHz |
| Frequency Stability | ±0.002 PPM |
| Modulation Method | FM |
| Bandwidth | Dual 25MHz (50MHz total) |
| Adjustable Frequencies | Up to 1000 channels |
| Receiving Sensitivity | -100 dBm |
| Signal-to-Noise Ratio | ≥113dB |
| Frequency Response | 40Hz–18kHz |
| Distortion | ≤0.5% |
| Audio Output | XLR balanced / 6.35mm mixed |
| Power Supply (Receiver) | DC 12–18V / 1000mA |
| Power Consumption | ≤10W |
| Transmitter Battery Life | 6–10 hours |
