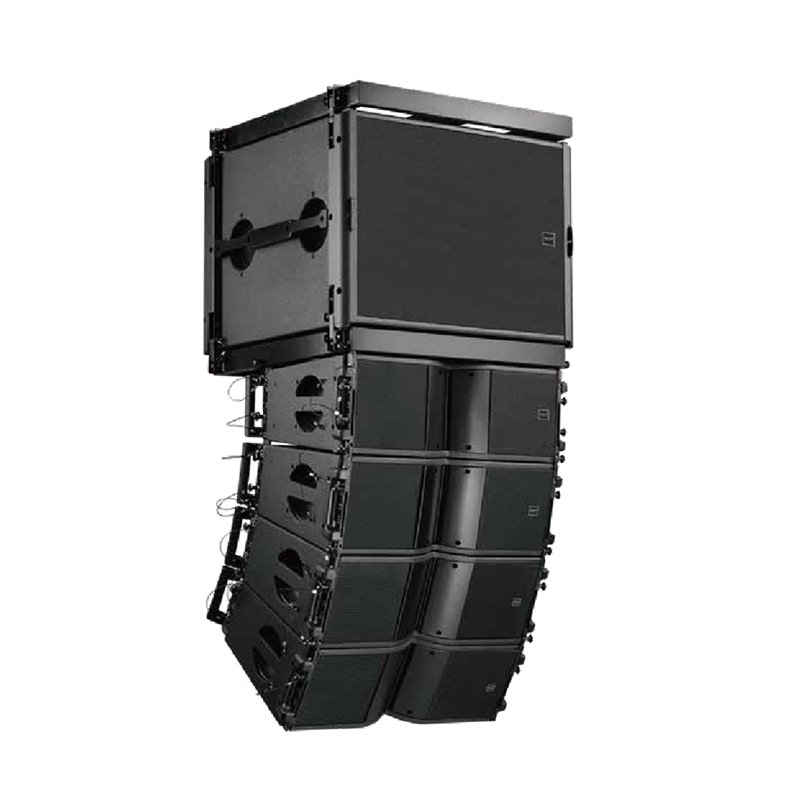

LA210 Series
Dual 10-Inch Line Array Speaker System
Model : LA210, LA210-P
Description
The LA210 is a dual 10-inch two-way line array speaker system, designed for high-performance sound reinforcement in both portable and fixed installations.
It is available in passive and active (powered) versions, with a trapezoidal cabinet design that minimizes gaps between speakers for a smooth array line.
Built from 18mm birch plywood and finished with environmental, anti-scratch paint, the LA210 offers clarity, durability, and easy setup for touring and professional use.
The matching subwoofer LA210S extends low-frequency performance, while the system’s proprietary rigging design ensures safe and convenient hanging or stacking.
Technical Specifications:
| Model | LA210 (Passive) | LA210-P (Active) |
|---|---|---|
| System Type | Dual 10-inch line array speaker | Dual 10-inch active line array speaker |
| Frequency Range | 50Hz–20kHz | 50Hz–20kHz |
| Frequency Response (-3dB) | 60Hz–18kHz | 60Hz–18kHz |
| Sensitivity (1W/1m) | 106dB SPL | 106dB SPL |
| Nominal Impedance | 8 ohms | 8 ohms |
| Power Rating | 700W | 700W (built-in amp) |
| Maximum SPL | 138dB SPL | 138dB SPL |
| Drivers | LF: 2 × 10” ferrite drivers, 3” voice coil HF: 1 × 3” ferrite compression driver |
Same as passive version |
| Coverage Pattern | Horizontal: 110° / Vertical: 15° | Same as passive version |
| Cabinet Dimensions (H × W × D) | 300 × 780 × 439 mm | 300 × 780 × 439 mm |
| Net Weight | 38 kg | 39.4 kg |
| Input Connectors | Double Neutrik® NL4MP | Double Neutrik® NL4MP |
| Amplifier Design | — | Class D with FIR and DSP |
| Amplifier Power | — | 1200W / 8Ω |
| AC Input Voltage | — | 100–140VAC / 180–265VAC (50/60Hz) |
Subwoofer (Matching Model):
LA210S – Single 18-Inch Subwoofer
-
Frequency Range: 40Hz–500Hz
-
Frequency Response (-3dB): 50Hz–450Hz
-
Sensitivity: 104dB SPL (1W/1m)
-
Nominal Impedance: 8 ohms
-
Power Handling: 800W
-
Maximum SPL: 136dB SPL
-
Dimensions: 559 × 830 × 708 mm
-
Net Weight: 56 kg
-
Driver: 1 × 18” ferrite driver, 4” voice coil
-
Connector: Double Neutrik® NL4MP
Key Features:
-
Compact dual 10-inch line array system with high SPL.
-
Passive and powered versions with Class D DSP options.
-
Sturdy 18mm birch plywood cabinet with eco-friendly finish.
-
Proprietary rigging for fast installation and secure flying.
-
Consistent and powerful sound suitable for touring.
Applications:
-
Large and medium live sound reinforcement
-
Touring and rental setups
-
Outdoor and indoor concert events
-
Stadiums, theaters, and multi-functional halls
