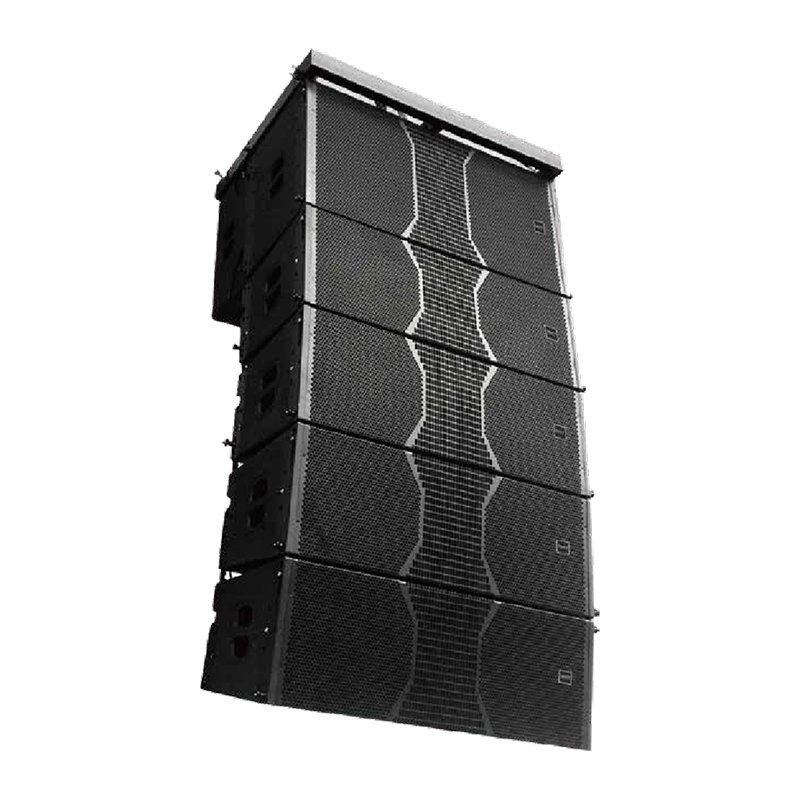

L210 Series
Dual 10-Inch Line Array Speaker System
Model : L210, L210 – P
Description
The L210 Series is a high-performance dual 10-inch line array loudspeaker engineered for professional touring, rental, and fixed installations.
It is available in both passive and active configurations, combining powerful output, precise coverage, and superior clarity for demanding live sound applications.
The large-angle horn design ensures uniform sound field radiation, providing even coverage across large audiences.
Built with 18mm birch plywood and finished with environmentally friendly paint, the L210 is durable, weather-resistant, and visually clean.
Its rigging system supports quick assembly and safe suspension, making it ideal for professional live productions.
Technical Specifications:
| Model | L210 (Passive) | L210-P (Active) |
|---|---|---|
| System Type | Dual 10-inch line array loudspeaker | Dual 10-inch active line array loudspeaker |
| Frequency Range | 50Hz–20kHz | 50Hz–20kHz |
| Frequency Response (-3dB) | 60Hz–18kHz | 60Hz–18kHz |
| Sensitivity (1W/1m) | 106dB SPL | 106dB SPL |
| Nominal Impedance | 8 ohms | 8 ohms |
| Power Rating | 700W | 700W (Class D built-in amp) |
| Maximum SPL | 138dB SPL | 138dB SPL |
| Drivers | LF: 2 × 10” ferrite drivers, 3” voice coil HF: 1 × 3” ferrite compression driver |
Same as passive version |
| Coverage Pattern | Horizontal: 110° / Vertical: 15° (adjustable) | Same as passive version |
| Cabinet Dimensions (H × W × D) | 309 × 865 × 483 mm | 309 × 865 × 483 mm |
| Net Weight | 39 kg | 41.4 kg |
| Input Connectors | Double Neutrik® NL4MP | Double Neutrik® NL4MP |
| Amplifier Design | — | Class D with FIR and DSP |
| Amplifier Power | — | 1200W / 8Ω |
| AC Power Input | — | 100–140VAC / 180–265VAC (50/60Hz) |
Subwoofer (Matching Model):
L210S – Single 18-Inch Subwoofer
-
Frequency Range: 40Hz–500Hz
-
Frequency Response (-3dB): 50Hz–450Hz
-
Sensitivity: 104dB SPL (1W/1m)
-
Nominal Impedance: 8 ohms
-
Power Handling: 800W
-
Maximum SPL: 136dB SPL
-
Dimensions: 503 × 861 × 700 mm
-
Net Weight: 68 kg (passive) / 70.4 kg (active)
-
Driver: 1 × 18” ferrite driver, 4” voice coil
-
Amplifier Design (active model): Class D with FIR and DSP
-
Power: 1200W / 8Ω
Key Features:
-
Dual 10-inch line array for mid-to-large scale applications.
-
Class D amplification with DSP (for active version).
-
Durable 18mm birch cabinet with eco-friendly coating.
-
Consistent horizontal coverage and precise vertical control.
-
Easy installation with professional rigging system.
Applications:
-
Concerts and touring productions
-
Theaters and auditoriums
-
Large conference venues and sports arenas
-
Outdoor events and rental setups
Additional information
| Model | L210, L210 – P |
|---|
