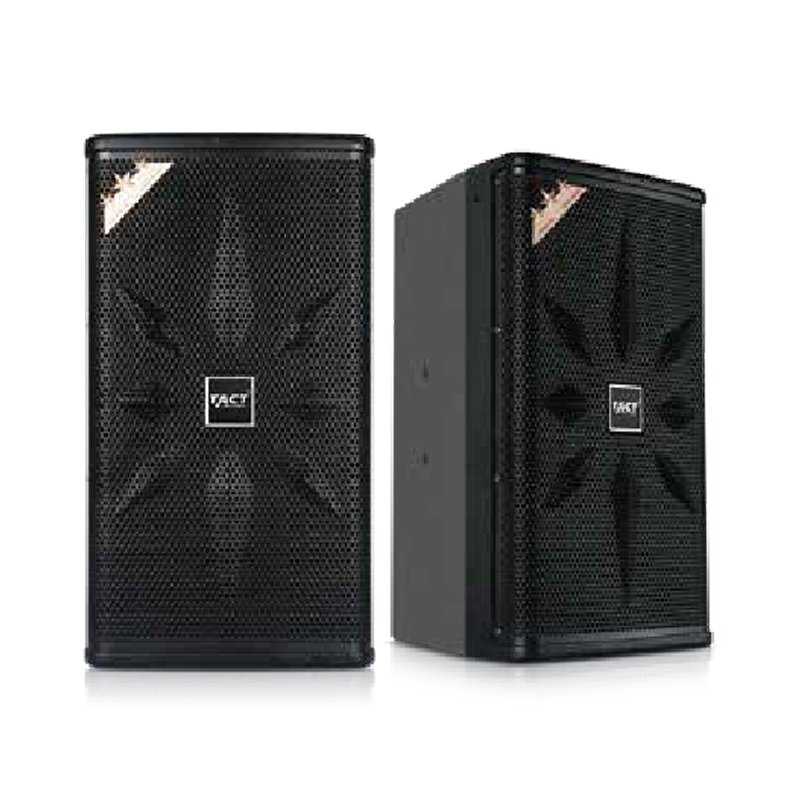

DO Series
Entertainment Speaker
Model : DO10, DO12
Description
The DO Series is designed for high-end KTVs, clubs, and entertainment venues, delivering clear highs, strong mids, and soft, powerful bass.
Its rotatable HF horn, rear phase design, and birch plywood enclosure ensure dynamic and precise sound reproduction.
Technical Specifications:
| Model | DO10 | DO12 |
|---|---|---|
| System Type | 10″ entertainment speaker | 12″ entertainment speaker |
| Frequency Range | 45Hz–20kHz | 45Hz–20kHz |
| Frequency Response (-3dB) | 50Hz–18kHz | 50Hz–18kHz |
| Sensitivity (1W/1m) | 99dB SPL | 99dB SPL |
| Nominal Impedance | 8 ohms | 8 ohms |
| Power Rating | 500W | 500W |
| Maximum SPL | 128dB SPL | 128dB SPL |
| Coverage Pattern | 110° × 60° | 110° × 60° |
| Cabinet Dimensions (H×W×D) | 526 × 297 × 340 mm | 596 × 360 × 380 mm |
| Net Weight | 15 kg | 24 kg |
